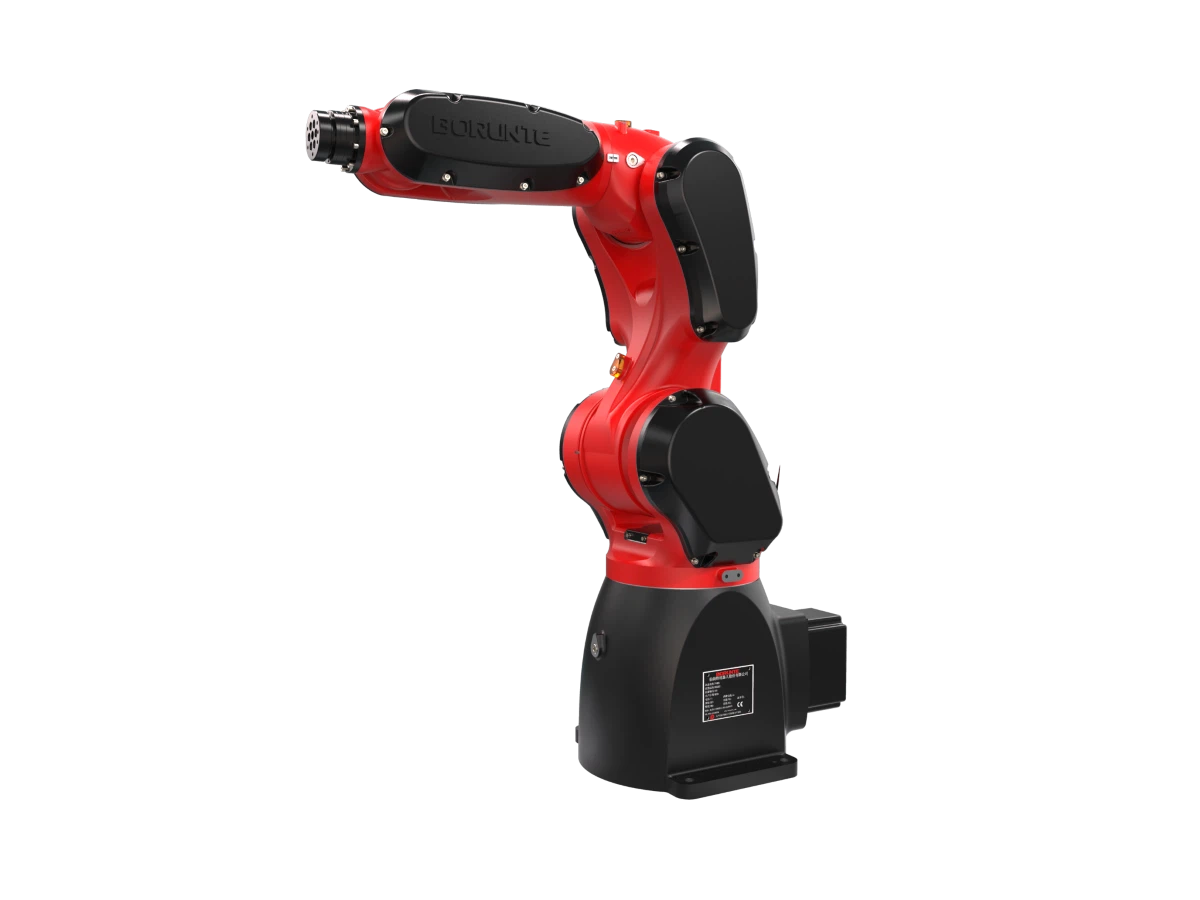

Products Description
Efficient Six Axis Versatile Robot is a multifunctional robot. The construction and form of the robot are small. There is a high-precision reducer in every joint. The high-speed joint speed can perform a variety of activities, including handling, grinding, assembling, and other tasks, in a constrained area. It may be installed in a variety of ways.
Features of Efficient Six Axis Versatile Robot
(1)Adopt a servo motor with a harmonic reducer construction, which has a small volume, a wide operating range, a quick speed, and high precision.
(2)The control system's portable conversation operator is
straightforward and simple to use, making it ideal for production.
Applications of Efficient Six Axis Versatile Robot
(1) Material handling
(2) Assembly
(3) Grinding and polishing
(4) Cutting / deburring

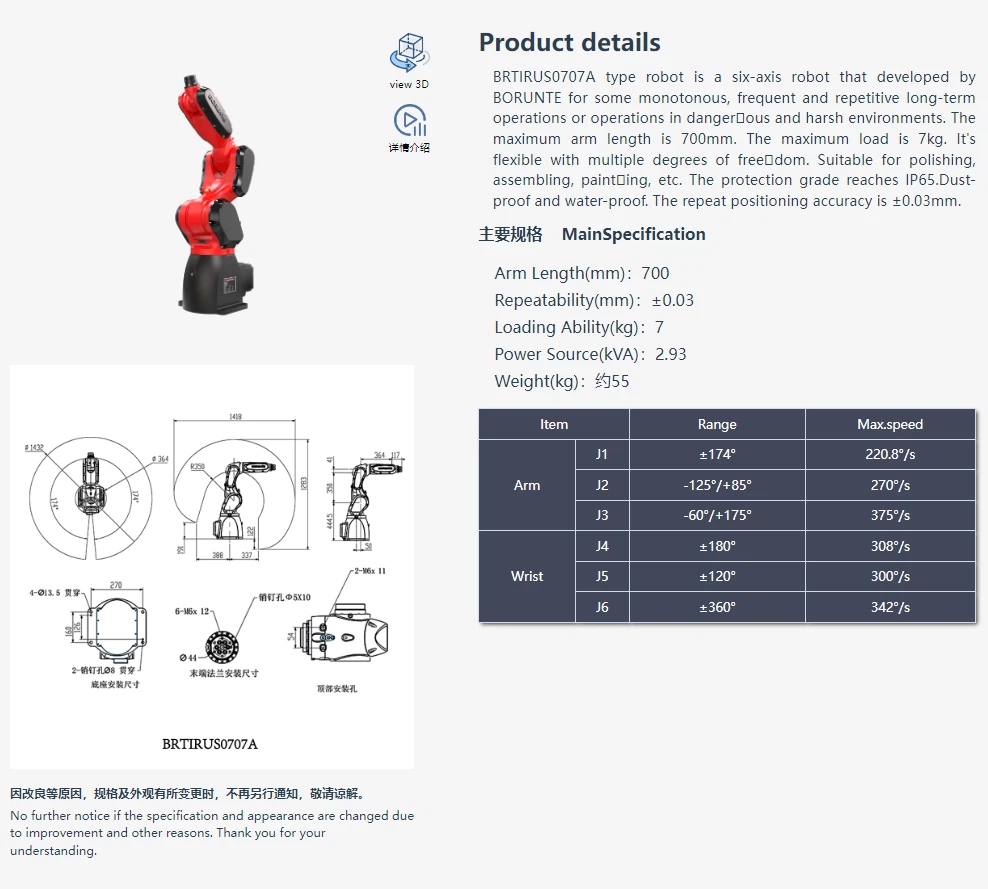

Main technical parameters of Efficient Six Axis Versatile Robot
|
Items |
Contents |
Unit value |
|
Body parameters |
Maximum operating radius |
700mm |
|
Max Loading |
7KG |
|
|
Repeat positioning accuracy |
±0.03mm |
|
|
IP code |
IP65 |
|
|
Weight |
About 55KG |
|
|
|
J1 |
-174°~+174° |
|
Motion range |
J2 |
-125°~+85° |
|
J3 |
-60°~+175° |
|
|
J4 |
-180°~+180° |
|
|
J5 |
-120°~+120° |
|
|
J6 |
-360°~+360° |
|
|
Max speed |
J1 |
220.8°/s |
|
J2 |
270°/s |
|
|
J3 |
375°/s |
|
|
J4 |
308°/s |
|
|
J5 |
300°/s |
|
|
J6 |
342°/s |
