BRTIRUS3030A
Product detailed production:

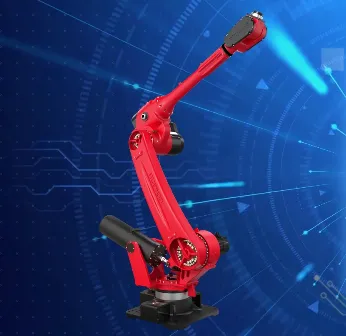

BORUNTE developed a six axis long arm industrial robot with a compact shape and structure, each joint is installed with a high precision reducer, high speed joint speed can be flexible operation, can perform handling, palletizing, assembly, injection molding, and other operations, and has a flexible installation mode. The wrist is protected to IP54 and the body is protected to IP40. Waterproof and dustproof. The repetition placement precision is 0.07mm.

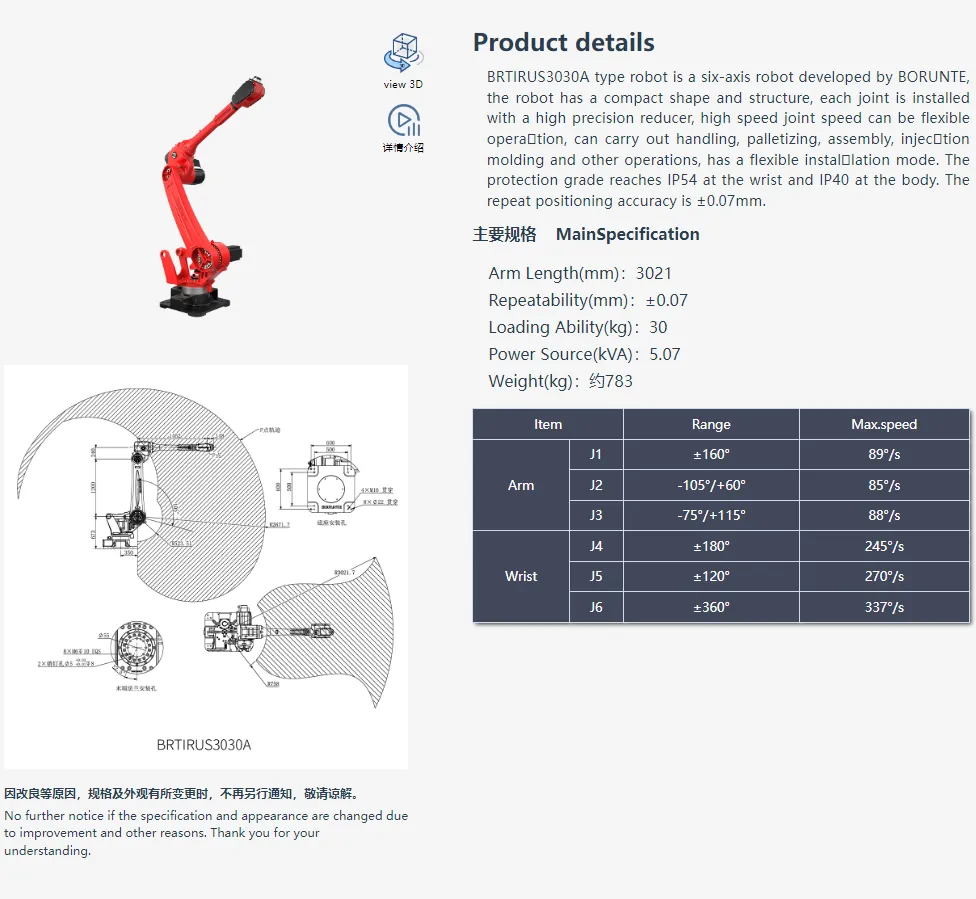

Basic parameters of six axis long arm industrial robot:
|
Model |
BRTIRUS3030A |
||||||||||||||
|
Axes |
6 axis |
||||||||||||||
|
Loading ability |
30KG |
||||||||||||||
|
IP code |
Body：IP50 Wrist: IP40 |
||||||||||||||
|
Repeated positioning accuracy |
±0.07MM |
||||||||||||||
|
Maximum arm span |
3000MM |
||||||||||||||
|
Weight |
783KG |
||||||||||||||
|
Max speed |
J1 |
89°/s |
J2 |
85°/s |
|||||||||||
|
J3 |
88°/s |
J4 |
245°/s |
||||||||||||
|
J5 |
270°/s |
J6 |
337°/s |
||||||||||||
|
Motion range |
J1 |
±160° |
J2 |
-105°/ +60° |
|||||||||||
|
J3 |
-75°/ +115° |
J4 |
±180° |
||||||||||||
|
J5 |
±120° |
J6 |
±360° |
||||||||||||
|
Maximum rotational torque |
J4 |
92.4N*M |
J5 |
96.5N*M |
J6 |
84.7N*M |
|||||||||
|
Maximum moment of inertia |
J4 |
1.5KG*M2 |
J5 |
1.64KG*M2 |
J6 |
1.37KG*M2 |
|||||||||
|
Mounting environment |
Operating temperature：0℃~40℃ Best temperature：25℃~40℃ Relative humidity：20~80%RH(No condensation) |
||||||||||||||
|
Mpa |
0.5~0.7Mpa |
||||||||||||||
|
Power supply |
380V±10％ 50HZ±1％ |
||||||||||||||
|
Core component |
Name |
Operating system |
Brand |
BORUNTE |
|||||||||||
|
Casting body |
BORUNTE |
||||||||||||||
|
Servo motor |
BORUNTE |
||||||||||||||
|
Reducer |
BORUNTE |
||||||||||||||
|
Electrical component |
BORUNTE |
||||||||||||||
|
Oil content |
J1 |
2000cc |
J2 |
1800cc |
J3 |
700cc |
J4 |
250cc |
J6 |
60cc |
|||||
|
Vulnerable parts |
J5 timing belt |
MBT233090502 Timing belt - 5M-09 bandwidth - 90 teeth |
|||||||||||||
|
Robot accompanying materials |
USB |
||||||||||||||
BRTIRUS3030A features
1. Adopting a servo motor with RV reducer structure, it has strong load-bearing capacity, wide working range, fast speed, and high accuracy.
2. Control system handheld conversational teaching pendant is simple and easy to learn, very suitable for production.
3. The robot body adopts partial internal wiring, which is safe and environmentally friendly.
Working conditions of six axis long arm industrial robot:
1. Power supply: 380V±10% 50HZ±1%
2. Operating temperature: 0℃ ~ 40℃
3. Optimal environmental temperature: 15℃ ~ 25℃
4. Relative humidity: 20-80% RH (No condensation)
5. Mpa: 0.5-0.7Mpa
How to order BORUNTE products?
Method 1: BORUNTE is responsible for R & D and production of robots, and the BORUNTE Integrator are responsible for selling products and providing application services. For the application case of your company you can consult our integrator, they will give you a specific plan for your needs.
Method 2: Place an order of 1000 sets single models from BORUNTE, and you can become the BORUNTE integrator.
