Borunte Robot Co., Ltd. is one of the most reliable manufacturers and suppliers of high speed take out manipulator in China, also supports customized service with low price. Please feel free to wholesale advanced high speed take out manipulator for sale here from our factory.
BRTN17WSS5PC
Product description:

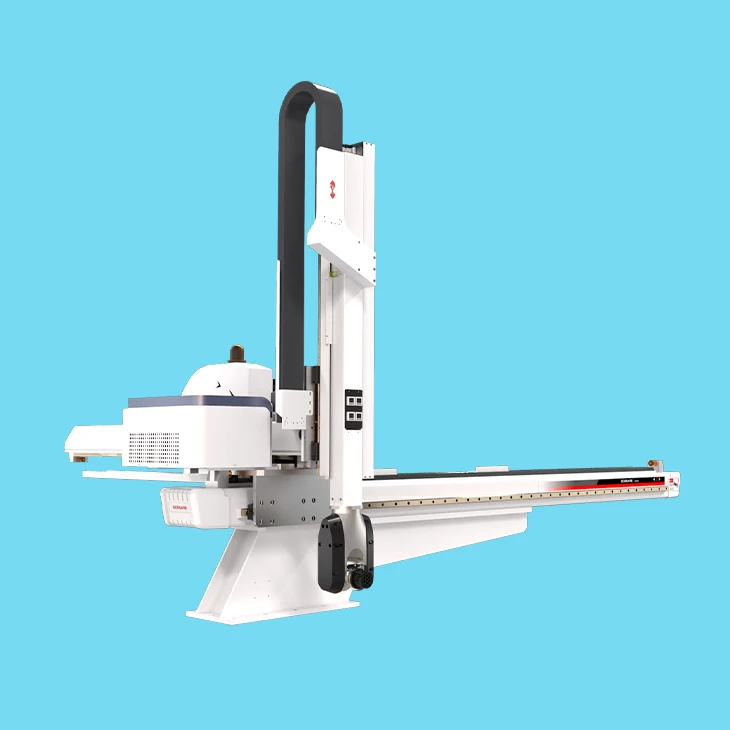

High speed take out manipulator is independently developed by BORUNTE and suitable for the application of 600~1300 tons of injection molding machine parts retrieval. The maximum load of this manipulator can reach 20kg, making it very suitable for the retrieval and placement of large work pieces, such as washing machine outer boxes, car front covers, large plastic pots and buckets, etc.
The regular and orderly operation reduces manual damage to the finished product, improves the product qualification rate, and the use of a robotic arm can make the injection molding machine operate 24 hours without stopping, While improving production efficiency, it also reduces manual labor. This machine uses a convenient and simple handheld teaching pendant for programming, making programming simple and convenient.
Maintenance and Care of high speed take out manipulator:
Maintenance page, as shown in the figure below:
In this page, you can upgrade the system and update the pictures.
Upgrade description:
Copy the upgrade program to the USB flash disk, insert the USB flash disk after powering on the manual controller, log in as advance admin, and turn the switch to Stop to enter the "Maintenance" function; click "Scan Update Package"; after the version number displays, select the version; and then click "Start Update". The system will restart automatically and then pull out the USB flash disk.
Update description of start page and standby page:
Create a new HC Update_pic in the root directory of the USB flash disk, and copy the picture that needs to be used as the startup page to this folder; (Note: the picture on the startup page needs to be 800*600, and the picture on the standby page needs to be 800*400, in png format).
Insert the USB flash disk to the manual controller：
Click "Update Picture" and a picture update window will pop up; and then click "Scan Picture";
Select the picture that needs to be used in standby, click to select it as the standby page, and the prompt "Setting successful, take effect after restart" will pop up; select the picture on the startup page, click "Select as Start Page", and the prompt "Setting successful, take effect after restart" will pop up; then exit and restart the system.
Factory Reset: This function is a non-standard
Main features of high speed take out manipulator:
The product is suitable for taking out the finished product and nozzle of 600T-1300T horizontal injection molding machine.It is especially suitable for the removal of common plastic objects in the injection molding industry, such as transparent table, tea table, name card box, crystal lamp, crystal ball, picture frame, jewelry box, camera lens, telescope lens, TV screen, car lampshade, speaker panel and other injection molding products.
