Borunte Robot Co., Ltd. is one of the most reliable manufacturers and suppliers of fast 6 axis assembly robot in China, also supports customized service with low price. Please feel free to wholesale advanced fast 6 axis assembly robot for sale here from our factory.
BRTIRUS0707A
Product lntroduction

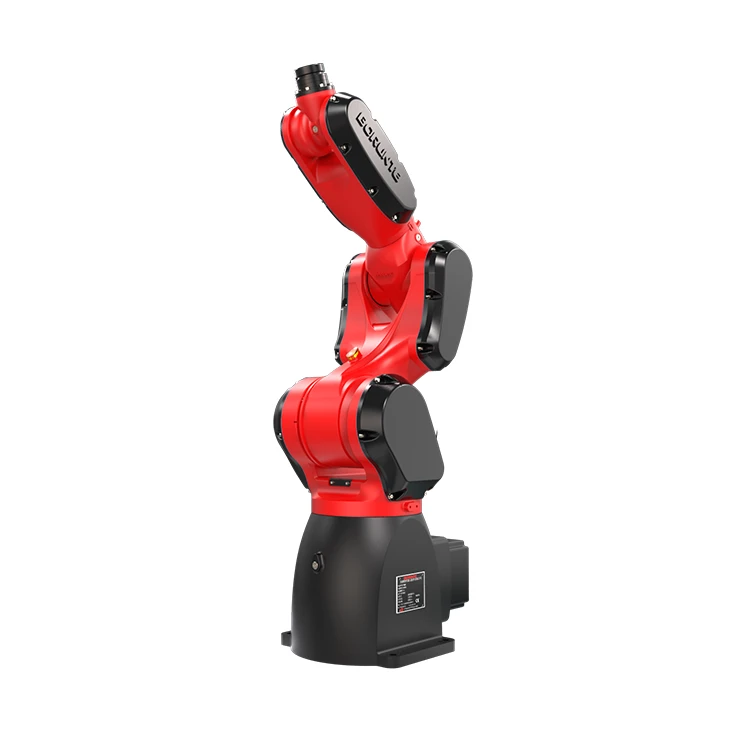

BRTIRUS0707A robot is designed by BORUNTE ROBOT CO,. LTD with high efficiency and intelligence, wide application of scene and suitable for complex environment work.
Product parameter(specification)
|
Model |
Arm Length(mm) |
Loading ability(KG) |
Repeatability(mm) |
Power Source(KVA) |
Net Weight(KG) |
|
BRTIRUS0707A |
700 |
7 |
±0.03 |
3 |
About 55 |
|
Arm |
J1 |
J2 |
J3 |
J4 |
J5 |
J6 |
|
Range |
±174° |
-125°/+85° |
-60°/+175° |
±180° |
±120° |
±360° |
|
Maximum speed |
220.8°/S |
270°/S |
375°/S |
308°/S |
300°/S |
342°/S |
Product feature and application
■ Adapt to more environments
7kg load, higher protection level, adapt to more severe site
■ Maximum flexibility
Compared with similar models, it is more flexible and moves the least joints to complete the operation
■ Lasting and firm
Compact structure, no need to change grease, minimize maintenance costs
■ External remote control
Support external remote TCP / IP serial communication, realize intelligent programming
■ Applicable industry: processing, cutting and painting
Handling method
Cranes should be used when handling robots. For the handling method, please refer to figure 4.1. First, set the robot posture according to the angle standard of the machine retracting posture, then pass the lifting belt through the lower part of the second axis, and pay attention to place the two ends of the lifting belt on both sides of the fuselage to avoid rollover. The length of the lifting belt is recommended to be 1.8m.
 |
 |
|
| Figure 4.1 | ||
