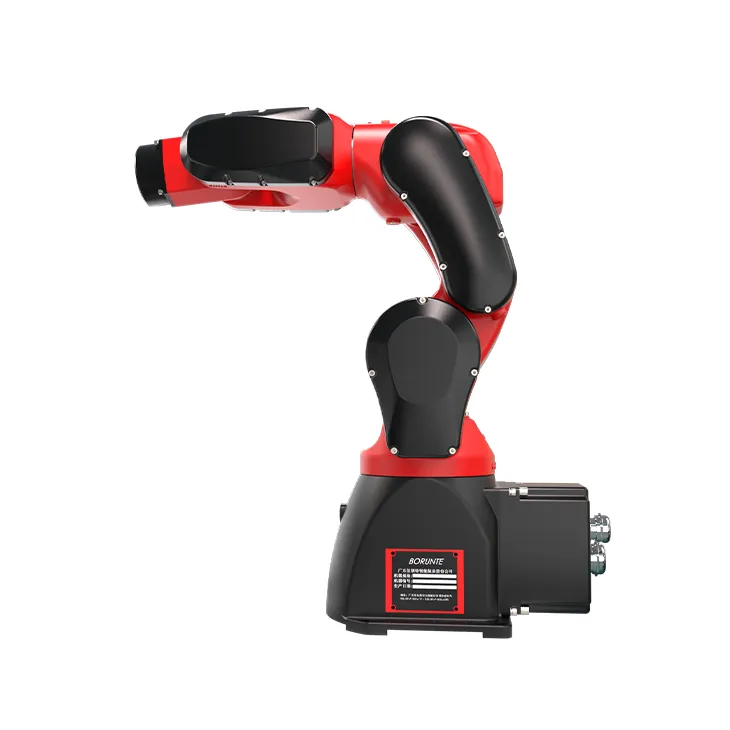

BRTIRUS0401A
Product description:
This desktop level industrial robotic arm can be used in a host of pick and place applications such as machine loading, unloading and assembly applications. Known for its unique design, the BRTIRUS0401A has a total arm length of 465mm and 1kg maximum loading ability and a slight weight of 21kg.
Main technical parameters of desktop level industrial robotic arm:
|
Items |
Contents |
Unit value |
|
Body parameters |
Maximum operating radius |
465mm |
|
Max loading |
1KG |
|
|
Repeat positioning accuracy |
±0.06mm |
|
|
IP code |
IP54 |
|
|
Weight |
21KG |
|
|
Motion range |
J1 |
-160°~+160° |
|
J2 |
-120°~+60° |
|
|
J3 |
-60°~+180° |
|
|
J4 |
-180°~+180° |
|
|
J5 |
-110°~+110° |
|
|
J6 |
-360°~+360° |
|
|
Max speed |
J1 |
324°/s |
|
J2 |
297°/s |
|
|
J3 |
337°/s |
|
|
J4 |
562°/s |
|
|
J5 |
600°/s |
|
|
J6 |
600°/s |
Working conditions of desktop level industrial robotic arm:
1. power source：220V±10% 50HZ±1%
2. temperature：0℃-40℃
3. best temperature：15℃-25℃
4. relative humidity：20-80%RH ( No condensation )
5. Mpa：0.5-0.7 Mpa
Four major feature of BRTIRUS0401A:
1. Minimize footprint
The BRTIRUS0401A is smaller than any BORUNTE industrial robot arm. Featuring an embedded controller, it is also unbelievably compact.
2. Reduce tolerances
Built with precision-machined aluminum and zero-backlash gearboxes, the BRTIRUS0401A is the world's most precise six-axis robot. It boasts a repeatability of 5.
3. Facilitate robot arm integration
The BRTIRUS0401A is a plug and work automation component, easy to interface with any computer or PLC. Easily operate the robot using any programming language you prefer.
4. Benefit from flexibility
The robot is easy to mount in any orientation. It automatically compensates for gravity, without requiring any software adjustments. This added flexibility enables easy integration in a wide variety of settings.
