BRTIRUS2110A

Product introduction:

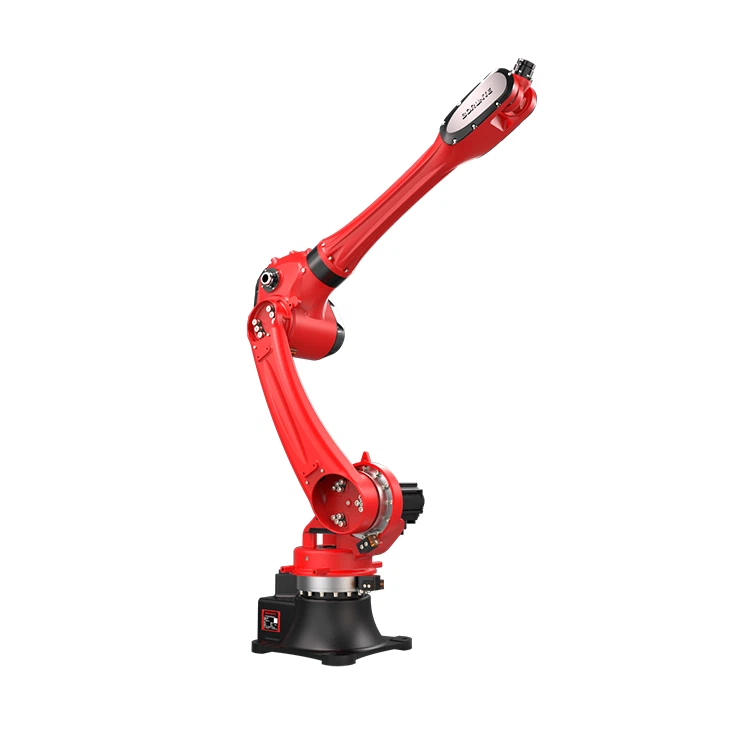

BRTIRUS2110A is a long span industrial robotic arm, the protection grade reaches IP 54 at wrist and IP40 at the body. It has a maximum load of 10KG and a max arm span of 2100 mm, which is the biggest six axis robot in our robot series. Six axis degree of freedom and long arm length make it work flexibly in transportation, stacking, loading and unloading. The repeated positioning accuracy is ±0.05mm.

Major technical parameters:

Items	Contents	Unit value
Body parameters	Maximum operating radius	2100mm
	Max loading	10KG
	Repeat positioning accuracy	±0.05mm
	IP code	Body IP40;Wrist IP54
	Weight	About 230KG
Motion range	J1	±155°
	J2	-90°(-140°Downward probe adjustable)～+65°
	J3	-75°～+110°
	J4	±180°
	J5	±115°
	J6	±360°
Max speed	J1	110°/s
	J2	146°/s
	J3	134°/s
	J4	273°/s
	J5	300°/s
	J6	336°/s

Application cases of long span industrial robotic arm:

1. Material handling and stacking

2. Packaging and assembly

3. Grinding and polishing

4. Laser welding

5. Spot welding

6. Bending

7. Cutting/deburring

Network Configuration:

Click the button product-64-65 to enter the following interface:

product-676-375

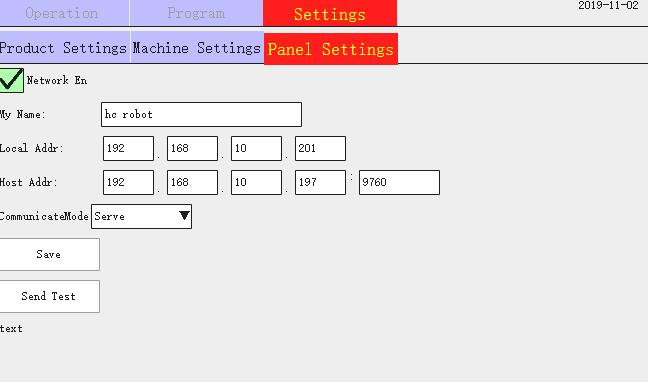

Network enable method:

1. Check it.

Set whether to enable remote control. If you select Use, the "Command List" button appears.

product-648-382

3. Set whether to communicate with the host network.

4. Set the name of the machine.

5. Robot IP address (only the opponent controller has a network port valid).

6. Fill in the peripheral destination IP address.

7. Select the communication mode.

8. Click the [Save] button to save the set data.

9. Click the [Send Test Data] button.

10. Waiting for the external feedback data to the hand controller indicates that the network configuration is successful.

Note: This setting is for the manual network port setting.

Features and functions of long span industrial robotic arm：

● Adopt servo motor with RV Reducer structure, with strong bearing capacity, large working range, fast speed and high precision.

● the handheld dialogue operator of the control system is simple and easy to learn, which is very suitable for production.

● the robot body adopts partial internal wiring, which is safe and environmentally friendly.
