BRTIRWD2206A
Product introduction:

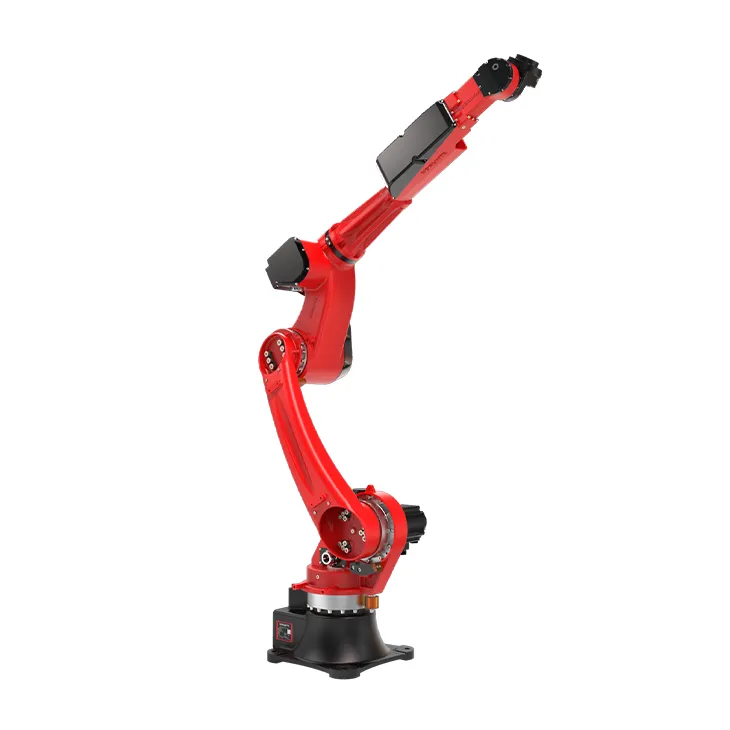

BRTIRWD2206A is a long span industrial welding robot developed by BORUNTE CO., LTD. The characteristics of the body robot are 2200mm arm length, 6kg loading ability and protection grade reaches Wrist IP54 and Body IP40. Hollow structure arm design makes it more convenient and flexible. The industrial sector and the automotive industry can fully use robots to help automate welding. The robot can work quickly and accurately.
Main technical parameters:
|
Items |
Contents |
Unit value |
|
Body parameters |
Maximum operating radius |
2200mm |
|
Max loading |
6KG |
|
|
Repeated positioning accuracy |
±0.08mm |
|
|
IP Code |
Wrist IP54 and Body IP40 |
|
|
Weight |
About 237KG |
|
|
Motion range |
J1 |
-155°~+155° |
|
J2 |
-130°~+68° |
|
|
J3 |
-75°~+110° |
|
|
J4 |
-153°~+153° |
|
|
J5 |
-130°~+120° |
|
|
J6 |
-360°~+360° |
|
|
Max speed |
J1 |
106°/s |
|
J2 |
135°/s |
|
|
J3 |
128°/s |
|
|
J4 |
168°/s |
|
|
J5 |
324°/s |
|
|
J6 |
504°/s |
Application Environment:
(1) Laser welding
(2) Spot welding
(3) Material handling and stacking
(4) Packaging and assembly
(5) Polishing
(6) Bending
(7) Cutting/deburring
Features and functions of long span industrial welding robot：
● it adopted a servo motor with RV Reducer structure and servo motor with hyperboloid gear structure are adopted, with strong bearing capacity, large working range, fast speed and high accuracy.
● the handheld conversational operator of the control system is simple and easy to learn, which is very suitable for production.
● the robot body adopts partial internal wiring, which is safe and environmentally friendly.
Automatic Mode:
The third gear knob to "automatic" into the automatic state is as follows:
In this interface, press the start button on the hand controller, the robot will start the movement to teach a good program.
Speed control enable: After checking, press the key speed deceleration key on the manual controller to adjust the speed.
Follow: Select the program to run after the step to which step the color will become dark.
Single-step mode: single-step operation in automatic mode.

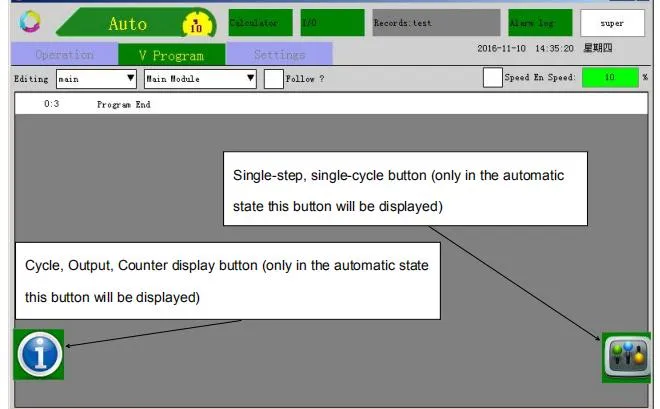

Please refer to the following figure for the method of use long span industrial welding robot:
Single-cycle mode: The program moves from the first step to the end of the module.
Cycle Time: The time taken by the entire program to go to the end of the module.
Cycle Display Button: Click this button to display the cycle time and the current cycle time. You can also view all counter count status, timer timing and stack parameter settings.
