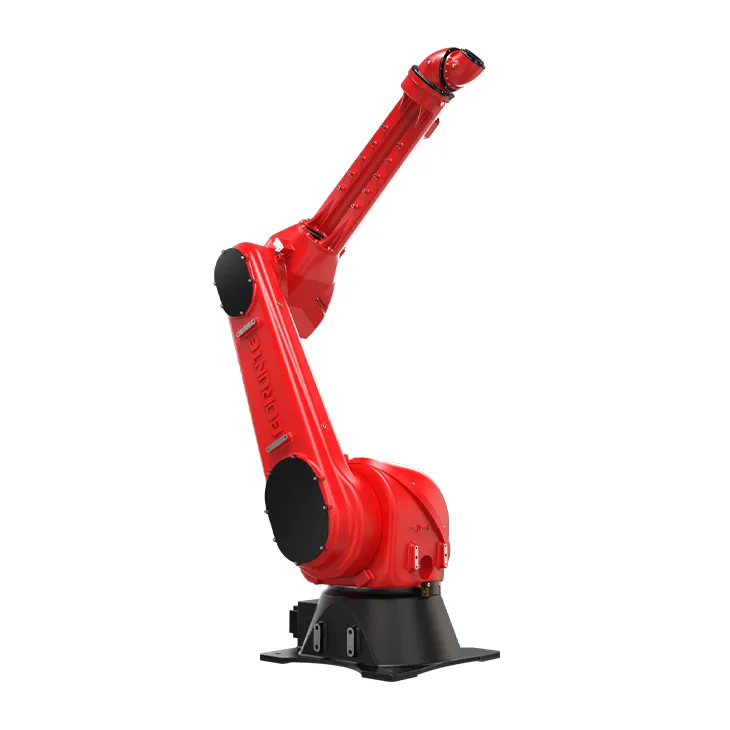

Introduction of Six Axis Industrial Spraying Robot

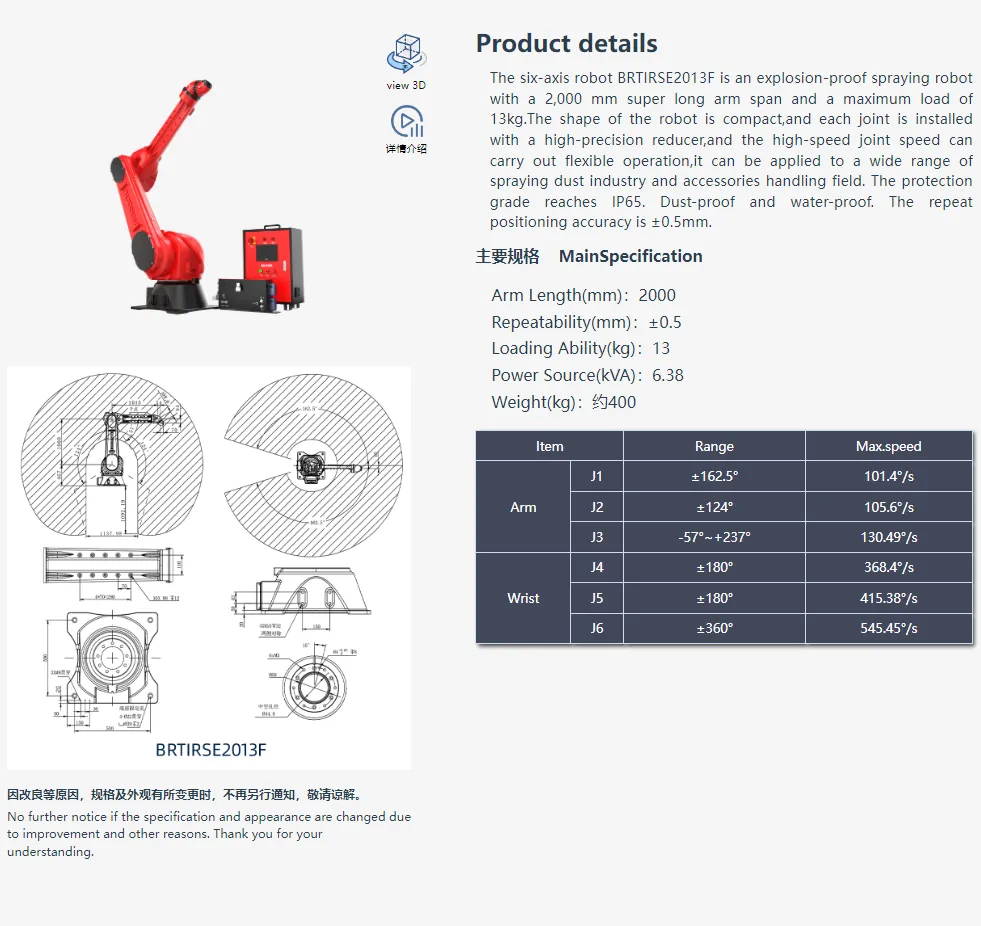

The six-axis industrial spraying robot BRTIRSE2013F has an arm reach of 2,000 millimeters, is explosion-proof, and can carry up to 13 kg of weight. The robot's small design, high-precision reducers installed in each joint, and versatile operating capabilities of the high-speed joints make it suitable for use in a variety of fields, including the handling of accessories and the spraying of dust. At the body, the protection level increases to IP65. both water- and dust-proof. 0.5mm is the repetition placement accuracy.
Features of Six Axis Industrial Spraying Robot
1.It uses a servo motor construction with a planetary reducer and RV reducer, which has strong bearing capacity, a wide operating range, quick speed, and excellent precision.
2.The rear motor design is used with four axes and five to six shafts to create the hollow wire at the end.
3.The control system's portable conversational operator is simple to use and ideal for production.
4.The robot body uses safe and ecologically friendly partial internal wiring.
Working Condition Of Six Axis Industrial Spraying Robot
|
power source |
220V±10% 50HZ±1% |
|
temperature |
0℃-40℃ |
|
best temperature |
15℃-25℃ |
|
relative humidity |
20-80%RH ( No condensation ) |
|
Internal cavity gas source pressure |
≦0.1Mpa |
Reducers of Six Axis Industrial Spraying Robot
The robot uses planetary and RV reducers as its reducers.
The primary characteristics of an RV reducer are its:
1.compact mechanical construction;
2.light volume;
3.small size;
4.high efficiency;
5.good heat exchange performance;
6.quick heat dissipation;
7.high transmission speed ratio, plenty of torque, and a high overload bearing capacity;
8.Reliable operation;
9.Widely applicable;
10.Safe and secure.
