Small industrial robot
BRTIRUS0401A
Product description:

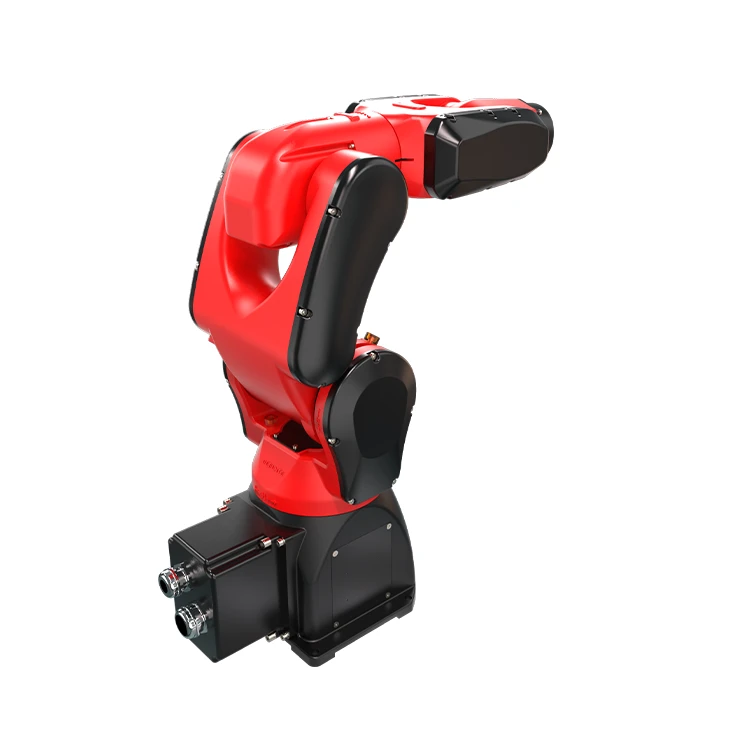

Small general purpose industrial robot is a six axis robot for the narrow space and the operation of the small materials. 1KG loading ability, 465mm arm span and 21KG net weight. Miniature but muti-functional and flexible. The IP code reaches IP54, dust-proof. The repeated positioning accuracy is ±0.06mm.
Allowable moment of inertia:
| J4 | 1.34N.m |
| J5 | 1.91N.m |
| J6 | 0.78N.m |
Allowable load moment of inertia:
| J4 | 0.0165Kg.M2 |
| J5 | 0.023Kg.M2 |
| J6 | 0.0077Kg.M2 |
Small general purpose industrial robot's vulnerable parts:
| 1 | Timing belt | Tooth shape 3M ,69 tooth, width 9mm | BORUNTE |
| 2 | Timing belt | Tooth shape 3M ,140tooth, width 6mm | BORUNTE |
| 3 | Timing belt | Tooth shape 3M ,59 tooth, width 6mm | BORUNTE |
| 4 | Timing belt | Tooth shape 3M,95 tooth, width 6mm | BORUNTE |
Working conditions:
1. power source：220V±10% 50HZ±1%
2. temperature：0℃-40℃
3. best temperature：15℃-25℃
4. relative humidity：20-80%RH ( No condensation )
5. Mpa：0.5-0.7 Mpa
Application environment:
1. Material handling
2. Assembling
3. Polishing
4. Cutting / deburring
Features of small general purpose industrial robot:
1. It can realize flexible combination of multiple CNC machine tools, automatic loading and unloading and work piece clamping with multiple degrees of freedom, and meet the requirements of highly difficult production process.
2. Industrial image recognition and detection system can be configured to realize static and dynamic grasping, stacking and other operations of work pieces.
3. It can realize continuous mass production of single work piece, without stopping and resting during operation, and improve automatic production efficiency.
4. It can realize automatic program conversion production of multiple varieties and small batches, shorten the cycle of product upgrading and investment in application equipment.
5. High adjustability, realizing communication with CNC machine tools, PLC, external sensors and other equipment, and achieving safe and reliable sequence control through programming.
6. It can easily realize multi line automatic production line and "digital" factory layout, save manpower to the greatest extent, and improve the technical image of factory production.
