BRTR07WDS5PC
Product description:
Linear molding injection robot is suitable for 50T-200T horizontal injection molding machine to take out the finished product and nozzle, arm form telescopic stage, two-arm, five-axis AC servo drive, can be used for quick removal or in-mold sticking, in-mold inserts and other special product applications. Accurate positioning, high speed, long life, and low failure rate. After installing the manipulator can increase production capacity (10-30%) and will reduce the defective rate of products, ensure the safety of operators, and reduce manpower. Accurately control production, reduce waste and ensure delivery.

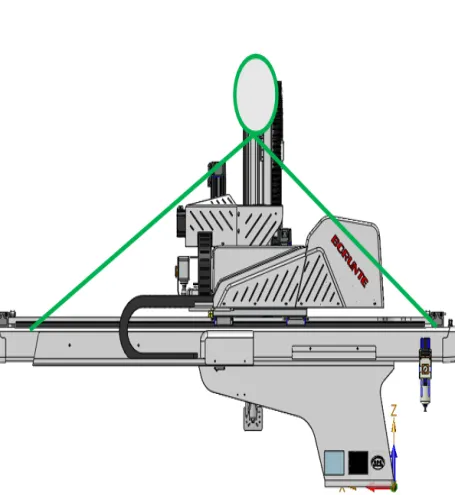

Rope lifting posture:
Lifting posture: When handling the linear molding injection robot, we should use a crane. Before carrying and lifting, it is necessary to use a lifting rope to firmly thread the robot and control the balance distance. Only then can the robot be lifted smoothly and carried out handling operations.
Tie the lifting rope from the base side, close to the pulling arm side, and thread it into the end of the transverse arch.
Bind both ends of the arch and tie the hook. Use a lifting rope at the pulling end to hook the pulling end, restrain the pulling beam, prevent overturning, and adjust the balance state.
Slowly loosen the screws in the base hole and control the balance of the lifting rope.
When the robot is not stable, tighten the base screws and readjust the balance of the rope.
Repeat fine adjustments until the machine can be lifted in a balanced manner.
Then slowly lift the robot and perform lifting and translation operations.
Handling precautions:
Precautions for mechanical arm handling
The following are the robot handling operation precautions. Please fully understand the following content before working safely:
Personnel with qualifications for hooks, lifting operations, forklifts, and other operations must carry out the handling of robotic arms and control devices. Handling operations carried out by operators who do not have the correct skills may lead to accidents such as overturning and falling.
When handling the linear molding injection robot and control device, follow the methods recorded in the maintenance manual, confirm the weight and steps, and then proceed with the operation. If the operation cannot be carried out according to the specified method, it may cause the robot and control device to overturn or fall during transportation, leading to accidents.
When carrying out handling and installation operations, avoid damaging the wiring. In addition, after the assembly of the device is completed, protective measures such as covering with protective covers should be taken to avoid damage to the wiring by operators, forklifts, etc.
