BRTYZGT04S2B
Product description:

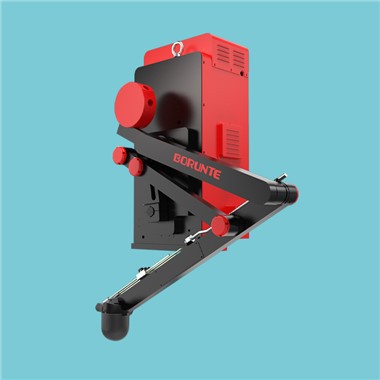

Industrial die casting ladle is a two-axis robot developed by BORUNTE. It adopts a new drive control integrated control system, with fewer signal lines and simple maintenance. It is equipped with a handy mobile hand-held operating device; the parameters and function settings are clear, and the operation is simple and fast. The whole structure is driven by a servo motor and RV Reducer, which makes the operation more stable, accurate, and efficient.
General setting of industrial die casting ladle:
Password 2010, enter“2010”and press “ENTER”， that is to enter the special function 1 screen, a total of two settings screen, you can pressthe up and down cursor keys to move to the settings, change the parameters,then press “ENTER” set value can be changed.
1. System language: Press The Input Key to choose Chinese and English display.
2. Tang Arm Standby Mode: Pre-standby/after standby, you can press the “input” button to switch.
Front stand-by: under the automatic operation, the arm advances to the pouring position, waits for the clamping signal and the allowing pouring signal, two signals simultaneously satisfy the post-pouring signal. If have been waiting for no signal (abnormal back time to) , Tang Arm back again take soup, again take soup! Repeat 5 times, no signal, stop at origin. If there is a clamping signal and a permit pouring signal at this point, stop at the origin and wait while the soup is retaken.
After stand-by: in the running state, the arm takes the soup and waits at the origin, when the system detects (the mold opening limit is broken) , industrial die casting ladle advances to the soup pouring position (waiting for the pouring signal to be allowed to pour the soup) , the pouring signal is allowed to pour the soup, there is no abnormal backward time, take the soup again, repeat 5 times no signal, stop at the origin, if there is a clamping signal and allow pouring signal, take the soup again, do not stop at the origin and wait.
3. Spoon wait position: normal/set, press enter > key to switch.
Normal: the horizontal state of the spoon stand by, waiting for the permit pouring signal and clamping limit signal.
Setting: The Spoon is put on standby according to the setting state, waiting for the allowed pouring signal and the clamping limit signal.
4. Spoon back mode: Horizontal/non-horizontal, you can press enter > Key to switch.
Horizontal: the spoon must be in the horizontal position when the arm falls back, otherwise it will call the police.
Non-level: When the arm back, not limit the state of the spoon.
5. Button Sound: On/Off, you can press enter > Key to switch.
Open: There is a key sound when the key is pressed.
Off: No Key Sound when pressing a key.
