BRTIRPZ2465A 65kg Four Axis Palletizing Robot

Borunte Robot Co., Ltd. is one of the most reliable manufacturers and suppliers of brtirpz2465a 65kg four axis palletizing robot in China, also supports customized service with low price. Please feel free to wholesale advanced brtirpz2465a 65kg four axis palletizing robot for sale here from our factory.

Short Description

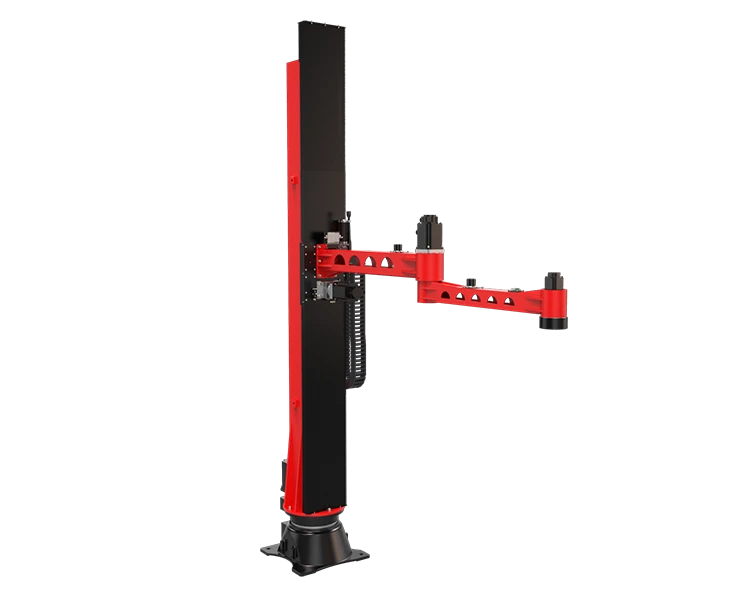

BRTIRPZ2465A four-axis column palletizing robot is the extended-reach model of BORUNTE palletizing series, developed to replace manual labor for monotonous, high-frequency repetitive tasks and operations in dangerous, harsh industrial environments. Equipped with identical 65kg maximum load, it upgrades to 2334mm arm span and 2.5m maximum palletizing height, capable of fully covering all standard pallets up to 1.2m×1.2m. Featuring simple operation, rapid response, outstanding safety and stable efficiency, this long-stroke robot is ideal for production lines requiring higher stacking layers and wider working radius.

Core Advantages

✅ Extended Working Envelope (Key Difference vs BRTIRPZ1865A) 2334mm arm span & maximum 2.5m palletizing height, fully compatible with 1.2m*1.2m standard pallets, meets demands for higher stacking layers.

✅ Simple Operation & Quick Response Intuitive control system, easy programming and parameter setup; fast motion response to boost line throughput.

✅ Safe & Stable Continuous Operation Industrial structural design for long-hour operation in harsh working sites, improving productivity while reducing workplace safety risks.

✅ High Positioning Accuracy ±0.15mm repeatability ensures neat stacking, avoiding cargo displacement and collapse.

✅ Streamlined Structure & Easy Maintenance Optimized mechanical layout, convenient access for daily inspection and component replacement.

✅ Long Service Life & Low Failure Rate Premium industrial components, stable continuous operation and minimized equipment downtime.

✅ Wide Multi-scenario Compatibility Supports high-level palletizing, handling, loading/unloading, depalletizing and raw material feeding. ✅ IP40 Protection Level Well-adapted for most indoor factory automation production workshops.

Main Technical Specifications

Application Scenarios

The BORUNTE BRTIRPZ2465A long-stroke palletizing robot is preferred for projects requiring higher stacking height and broader working radius. Widely applied in food & beverage, chemical raw materials, building materials, logistics distribution centers, daily necessities and pharmaceutical industries. Suitable for production lines that need to stack more layers of goods on pallets; if your workshop only requires medium stacking height below 1.8m, you may check the compact model BRTIRPZ1865A for cost-effective selection.

FAQ

Q1: What is the main difference between BRTIRPZ2465A and BRTIRPZ1865A? A: Both robots carry 65kg maximum load and ±0.15mm repeat positioning accuracy. The main gap lies in working range: BRTIRPZ2465A: 2334mm arm span, max stacking height 2.5m, full coverage for 1.2m×1.2m pallets, for high-layer palletizing; BRTIRPZ1865A: 2000mm arm span, max stacking height 1.8m, compact layout for medium-height stacking demands.

Q2: What pallet size can BRTIRPZ2465A handle? A: Its ultra-wide working area can fully cover all pallet sizes up to 1.2m × 1.2m, suitable for mainstream industrial standard pallets.

Q3: Is this four-axis robot suitable for continuous 24-hour production? A: Yes. Equipped with reliable drive system and industrial-grade structure, it supports non-stop long-time operation in normal factory environment with IP40 protection.

Q4: What jobs can BRTIRPZ2465A perform besides palletizing? A: It can complete loading & unloading, finished goods handling, depalletizing, bag/case feeding and other material transfer tasks.
