BRTIRUS1820A
Product description:

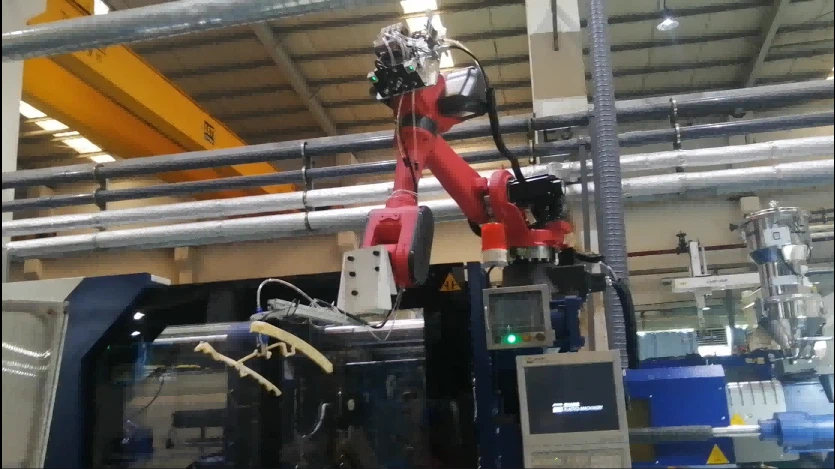

Automatic general use industrial robot is a universal robot with a small footprint and design. It has an 1850mm arm length. It can perform a variety of activities, including grasping, palletizing, assembling, injection molding, and other duties. It also includes a versatile mounting technique. The level of protection is IP40 for the body and IP54 for the wrist. It also has a repeat placement accuracy of 0.05mm. A servo motor with an RV Reducer construction is used, with a broad operating range, quick speed, and good precision.

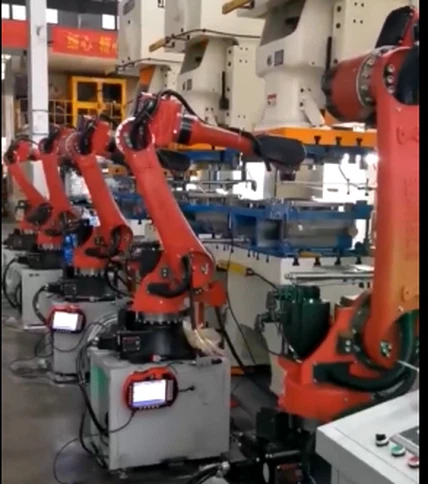

Application cases and features of automatic general use industrial robot:
(1) Material handling and stacking
(2) Packaging and assembling
(3) Grinding and polishing
(4) Laser welding
(5) Spot welding
(6) Bending
(7) Cutting
Simple to use and maintain:
(1) It may be programmed offline, which significantly reduces the time required for on-site debugging.
(2) The plug-in structure and modular design allow for quick component installation and replacement, reducing maintenance time significantly.
(3) The accessibility to all parts for maintenance is good and convenient.
Manual operation: To manually switch, use the manual - automatic switch:
(1) Manual arm action: Turn to the (forward) direction of extrusion, level the soup spoon, and the arm will proceed to the position of the soup injection to stop. When the extrusion direction is reversed, the arm returns to the soup noodles detected point. The forward or reverse action is halted when the detection bar is disconnected or detected.
(2) Manual injection of soup: When the next charge is switched to the (note soup) direction, the spoon will be slanted in that way. It should be noted that the soup's action position is determined by the position of the soup to be poured (forward limit) or the position of the arm low back to the noodle.
Main Technical parameters of automatic general use industrial robot:
|
Items |
Contents |
Unit value |
|
Body parameters |
Maximum operating radius |
1850mm |
|
Maximum load |
20KG |
|
|
Repeat positioning accuracy |
±0.05mm |
|
|
Power capacity |
5.87KVA |
|
|
IP code |
Body IP40,Wrist IP54 |
|
|
weight |
About 230KG |
|
|
Motion range |
J1 |
-155°~+155° |
|
J2 |
-140°~+65° |
|
|
J3 |
-75°~+110° |
|
|
J4 |
-180°~+180° |
|
|
J5 |
-115°~+115° |
|
|
J6 |
-360°~+360° |
|
|
Max speed |
J1 |
110.2°/s |
|
J2 |
140.5°/s |
|
|
J3 |
133.9°/s |
|
|
J4 |
272.7°/s |
|
|
J5 |
240°/s |
|
|
J6 |
375°/s |
