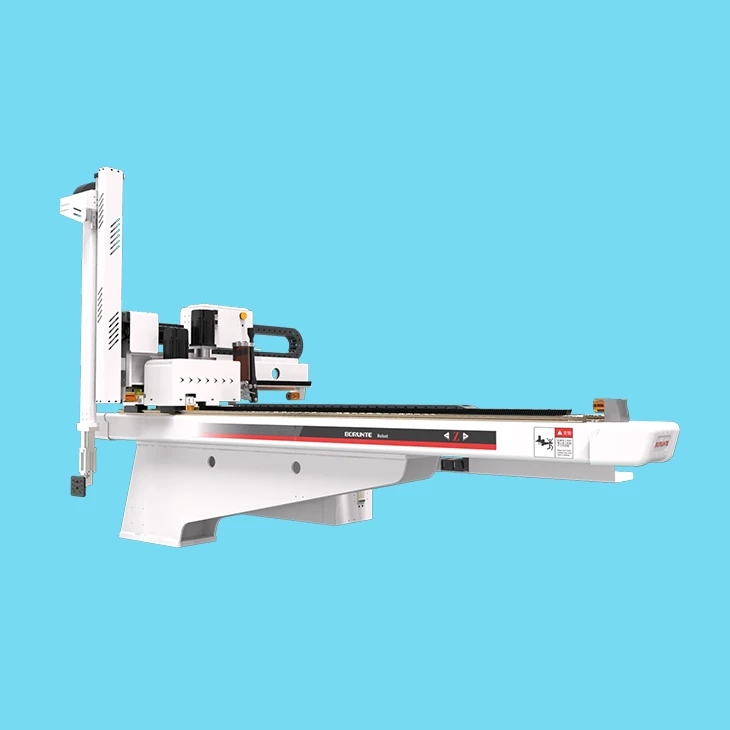

The five axis robotic arm mainly consists of a mechanical actuator structure and a control system. The mechanical structure includes a mobile phone holder, a walking mechanism, and a robotic arm; The control system mainly includes a manual controller, a main controller, and a servo control system. The five axis injection molding robotic arm is a fully servo robotic arm, with all five axis movements driven by servo motors, while the action components such as suction and clamping are controlled by pneumatic components. And which five axis is the five axis robotic arm? What are the characteristics of a five axis servo robotic arm?
1、 What is a five axis robotic arm
The five axes of a five axis robotic arm are: main arm extraction axis, main arm up and down axis, auxiliary arm extraction axis, auxiliary arm up and down axis, and transverse axis.
2、 What are the characteristics of a five axis robotic arm
2.1 Structural characteristics of the five axis robotic arm:
horizontal movement, pull-out, servo driven arm, double cut arm up and down, adjustable pull-out square structure, servo side pose group for lateral components, fast removal time, and convenient fixture adjustment. Long service life, low failure rate, less retrieval time of 1.8s, and a large load of 10KG (including fixtures and finished products), mainly used for quick retrieval or complex retrieval applications, especially for long products such as automotive products, washing machines and household appliances. The system adopts a system approach: less signal lines, long-distance communication, good scalability, strong anti-interference ability, accurate repeated positioning, can control multiple axes at the same time, simple equipment maintenance, and low failure rate.
2.2 Application characteristics of five axis robotic arms:
2.2.1. The five axis robotic arm is accurately controlled by the machine, so it can fully control product output according to the factory plan, eliminate factors such as manual uncertainty and incorrect operation, and have a fixed delivery date for customers, which can maintain good reputation and competitiveness.
2.2.2. The five axis robotic arm is equipped with a safety protection system, which can largely avoid the risk of accidental injury to employees, making operators feel at ease and steadily advancing factory tasks.
2.2.3. During normal production, the product is taken out by a five axis robotic arm, with a fixed injection molding machine cycle and excellent product stability, ensuring quality assurance.
2.2.4. During machine operation, the five axis robotic arm is a good substitute for manual operation. Compared to manual operation by workers, it can cause fatigue, and the robotic arm can continue to work, especially during night shifts, to play a significant role.
5. The five axis robotic arm improves work efficiency and reduces labor costs. With the help of a five axis servo robotic arm, production technicians can focus on other operations to promote benign management.
6. The five axis robotic arm implements a one person, one mechanism, and a dedicated person is responsible for it more effectively. Each staff member can have a comprehensive understanding of the machine they are responsible for, conduct timely inspections and maintenance, familiarize themselves with the operation status and output of the machine, achieve perfect human-machine cooperation, and make the five axis servo manipulator a good partner for factory operation.
Based on the above, the five axes of the five axis robotic arm we introduced to you are the main arm extraction axis, the main arm upper and lower axes, the auxiliary arm extraction axis, the auxiliary arm upper and lower axes, and the transverse axis. The structural characteristics of the five axis robotic arm are horizontal movement, pull-out, and servo drive. The arm is double cut up and down, and the pull-out square structure is movable. The lateral component is a servo lateral posture group, with fast removal time and convenient adjustment of fixtures. The application characteristics of a five axis robotic arm are accurate control, guaranteed quality, improved work efficiency, and reduced labor costs. The above introduction is hoped to be helpful to everyone.
