Borunte Robot Co., Ltd. is one of the most reliable manufacturers and suppliers of large industrial manipulator for injection in China, also supports customized service with low price. Please feel free to wholesale advanced large industrial manipulator for injection for sale here from our factory.

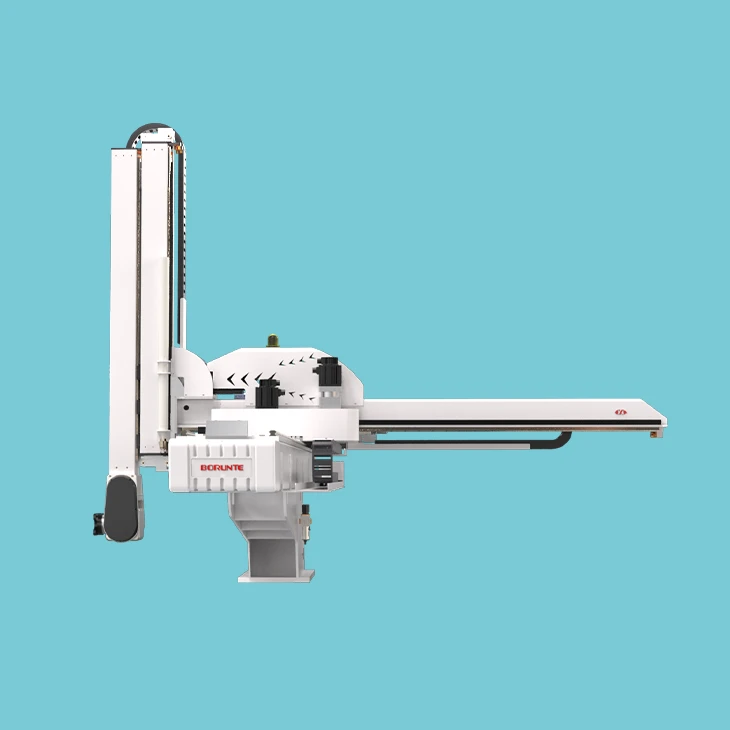

BRTN30WSS5PCFC
Product description:
Large industrial manipulator for injection is work with all types of 2200T-4000T injection molding machines for taking out products, it’s power supply is convenient, the response is fast, the driving force is large, the signal detection, transmission, processing is convenient, can use a variety of flexible control scheme of mechanical equipment.
AC servo drive and control system large industrial manipulator for injection:
Thanks to its five-axis drive and control system, an AC servo drive injection molding robot has fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high repeat positioning accuracy, can control multiple axes at once, is simple to maintain, and has a low failure rate.
Program selection:
Under the stop screen, press “PROG” ，enter the mold program selection and program teaching screen.
Enter the stored module number (0-99) in the read (0-99) input box and press “ENTER” to load the module number program, and run the group module number program in automatic mode. Select a group of module numbers from the 0-99 group to read out, write to the module number of the program to be taught in the 20-99 group, enter the program teaching screen, and then press the start key to enter the teaching mode.
Program teaching of large industrial manipulator for injection:
When teaching the program,Press “ENTER” move the cursor to the teaching action, press the manual button that needs to teach the action to teach the current step sequence action, and press the enter key to move to the delay time, speed and position setting respectively, and set the delay time of the current step sequence action , Speed and position,After the action of the current step is set, press “ENTER”,The manipulator performs the action
“INS” In the teaching mode, press the insert key to insert a line of no-action instructions before the selected teaching action. At this time, press the action button to be executed and then press the enter key to confirm, and a group of actions can be successfully inserted.
“DEL” Delete a line of action instructions in the teaching program to delete unnecessary actions.
Sequence number: the step sequence number of the current action.
Action: The currently taught action instruction.
Time: The delay time of the current action, that is, the action will be executed after the delay time expires.
Speed: The speed at which the robot arm moves to the current position. Position: The position the robot arm will move to when teaching an action.
